Features

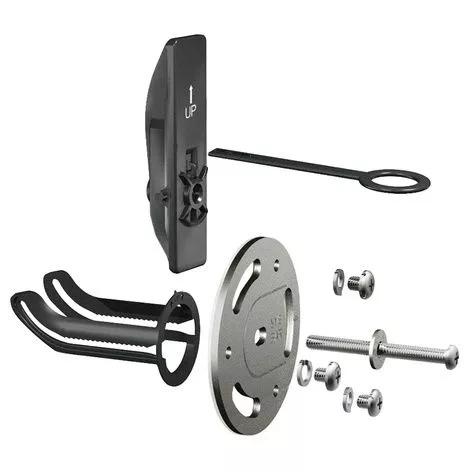

- Moen SecureMount Anchor System has chrome finish to create a bright, highly reflective and cool grey metallic look
- Mounting plate is made of stainless steel
- Requires a 3-1/2″ space behind the wall and works in the following substrates:
– 1/2″ or 5/8″ dry wall
– 1/2″ or 5/8″ dry wall with tile
– 1/2″ or 5/8″ dry wall with marble
– 1/8″ or 1/4″ fiberglass tub surround
More Information
- Installation Instructions:
Direction for wall mounting installation:
– Position grab bar on wall in desired location and mark around the outside of the flanges
– One at a time, center the mounting plate within the marked flanges, and mark the center hole for drilling
– Drill one hole at each mounting location
– Insert guide sleeves into each hole in the wall. (Note: UP indicator must always point up regardless of grab bar orientation)
– Connect pull tab to the secure mount anchor
– With pull tab up, insert the anchor all the way into the hole in the wall
– Pull back on the pull tab, and disconnect it from the anchor
– Place mounting plate over the hole and secure with the anchor screw, and flat and rubber washers. (Note: Bar indicators should be facing in, align arrows) – Align the grab bar flanges to the secure mount anchor and secure with flange screws and split lock washer
Directions for stud mounting installation:
– Position grab bar on wall in desired location and mark around the outside of the flanges
– Determine stud center and drill one pilot hole at each location.
– Install wood screw supplied with grab bar
– Install the 3 additional wood screws through the grab bar flange into the elongated mounting plate slots
