Jodi-Vac Hearing Aid Vacuum System Features

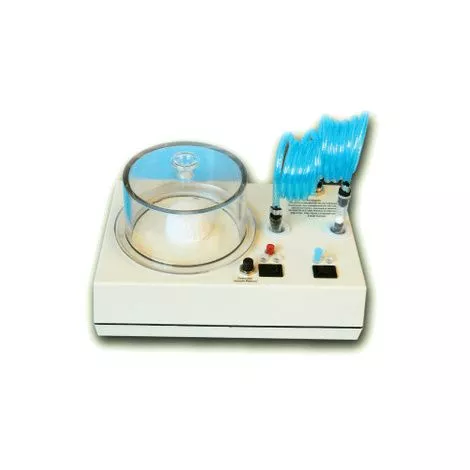

- Jodi-Vac XL with Air Pressure Hearing Aid Vacuum System:
– (1) Spare vacuum filter
– (1) Pink ITE, ITC, CIC, RIC needle
– (1) Black BTE ear mold needle
– (1) Light Blue open ear thin tube needle
– (2) Steel reamers
– (3) Flexible air pressure needles - Small and quiet, powerful and efficient and large silent desiccator
- Air pressure vent reamers will not bend in half yet remain flexible
- Box: 6″ x 9″ x 3″ tall, with desiccant lid and 6″ tubing
- Features desiccator lid, vacuum/press on or off switch
- Desiccator on or off switch, vacuum release remember and turn off switch
- Vacuum chamber indicator light and air pressure assembly, non removable
- Vacuum filter assembly with ball and inserts for needle storage
- Pump:
– Vacuum is 22.5″/Hg and is serviceable
– Pressure is 38 and up PSI and is serviceable
– Desiccator is 22.5″/Hg and is serviceable - Motor:
– Motor carries an industrial rating of 2000 hours of continuous operation - Electrical:
– All components operate at 12VDC
– Accepts ac voltage from 100 to 240vac, operating at 50/60Hz converting to 12VDC - Note:
– Home use of this product should get 12 months service
– Household consumer will get only one type of needle which is PINK ITE, ITC, CIC, RIC needle while professional consumers would get all three needles - Also available (separately):
– Jodi-Vac XL Hearing Aid Vacuum System (Code JodiXL)
Jodi-Vac Hearing Aid Vacuum System Benefits
- Desiccator:
– Desiccator goes into vacuum removing atmospheric moisture in the chamber as well as in the hearing instrument and the transducers.
– Plate is heated, 105 degree to 107 degress F
– A dry (blue) desiccant will remove two good sized drops of water in 20 minutes, much more than moisture, less than dripping wet
– Desiccant can be rejuvenated by microwaving. Blue is serviceable, pink is moisture laden.
– Desiccator indicator light is on when heater is on under vacuum - Air Pressure:
– ISO LuerLoc assembly is permanently attached to blue tubing.
– 3 reinforced flexible air pressure reamers used as a vent reamer, excluding pressure vents.
– Blue coiled tube extends to a full length of 35″.
– Air pressure also serves to dry and blow debris from battery compartments, volume controls, push buttons and switches. - Vacuum:
– Medical grade LuerLoc filter is easily replaceable.
– Wax/Debris collects in filter and a busy office should get six months of use from one filter.
– Vacuum filters are not serviceable, replace when full.
– The reusable ball in the filter is a flow indicator; an unclogged needle sends the ball towards the black connector.
– Three needles specifically designed for hearing instruments and two reamers are included.
– These needles range in size to efficiently clean large earmolds, ITE, ITC, CIC, RIC and thin tubes.
– Blue coiled tubing extends to a full length of 35″.
