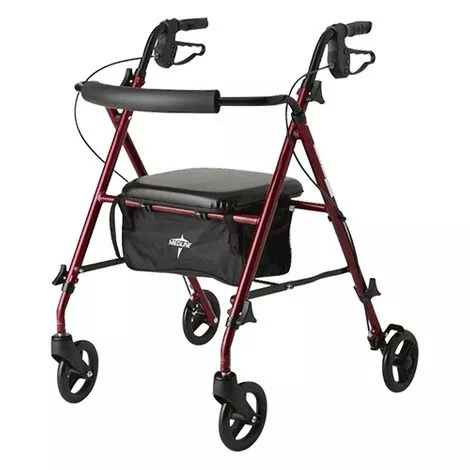

Guardian Superlight Freedom Rollator

Superlight Freedom Rollator Features

• Easily take this rollator in and out of the car or storage thanks to a lightweight design and a folding frame
• Height-adjustable arms and legs for a perfect fit; accommodates users 4’11” to 6’4″ (147 to 188 cm)
• Weight capacity of 250 lbs for aluminum models, 350 lbs for steel models
• Wheels are 6″ (15 cm); distance between handles is 17″ (43 cm); seat height is 18″-23″ (46-58 cm); overall height is 29″-36″ (74-91 cm)
• Removable nylon carry-all Bag
• Hand brakes lock for safety
• Swivel front wheel for easy maneuvering

What to buy with Guardian Freedom Rollator

• Medline Knockdown Aluminum Bath Bench With Back
• Medline 3 Inch Gel Foam Pressure Redistribution Cushion
• Medline Ultra Reacher With Non Slip Rubber For Secure Grip

How to Assemble Guardian Freedom Rollator?

• Carefully remove the rollator components from the shipping carton.
  • 1 Rollator Frame
  • 6 Triangular Hand Screws
  • 1 Bag with Shoulder Strap
  • 2 Front Wheels
  • 2 Rear Wheels
  • 1 Backrest with Push-Buttons
  • 2 Hand Grips with Brake Assembly
• Examine all parts for shipping damage. DO NOT use the rollator if there is apparent damage or if any parts (other than the bag) are missing. If there are missing or damaged parts, please call Medline Customer Care toll free at 1-800-MEDLINE.
• Check all of the wheels to see that they are in good working order and roll freely. Remove plastic cover from the wheels before use.
• Unfold the Medline Rollator by pushing down on the Folding Hinge (G) until the frame is in full extension.

Rear Wheel Assembly

1. Turn wheel so that it is facing outside of rollator.
2. Insert wheel to desired height depicted by numeric holes.
3. Insert triangular hand screw into hole on same side of wheel so that the triangular hand screw stays outside of rollator frame.
4. Tighten triangular hand screw until secure.
5. Repeat steps 1-4 for other rear wheel.

Front Wheel Assembly

1. When inserting front wheel make sure FRONT sticker is pointed toward the front and away from rollator.
2. Insert wheel to desired height depicted by numbered holes.
3. Place triangular hand screw into hole. Make sure triangular hand screw stays outside of rollator frame.
4. Tighten triangular screw until secure
5. Repeat steps 1-4 for other front wheel.

Brake Handle Assembly

1. Insert hand grip into appropriate hole
2. Insert triangular hand screw into hole on outside of rollator frame
3. Hand tighten screw until secure
4. Repeat steps 1-4 for other hand grip

Backrest Assembly

• Insert backrest into designated slot so that push-buttons are facing outward
• Push buttons in and continue to insert backrest until buttons securely lock into holes

Guardian UltraLight Freedom Rollator User Manual
