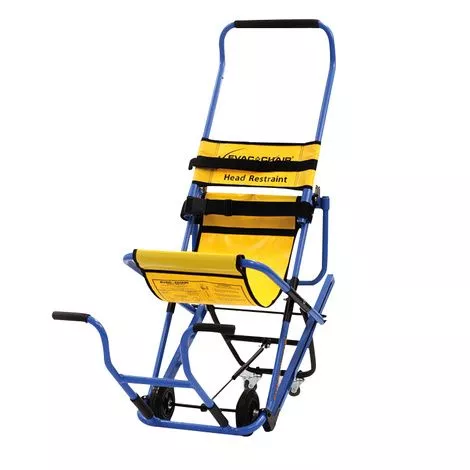

Evac 600H Chair Includes
- Photoluminescent Signage
- 3 Passenger Safety Belts (Head, Cheat, Thigh)
- Wall Mounting Brackets
- Dust Cover
- User Guide
- Instructional DVD
Advantages of 600H Evac Stair Chair
- Adjustable patient head restraint – Limits movement, securing the passenger in place
- Friction tracks (Evac+Track technology) – The self braking reinforced tracks control speed of descent for easy single person operation
- Ergonomic adjustable handle – For ease of deployment and compact storage
- Reflective decals – For easy location in situations of poor visibility
- Quick release safety belts (Head, Chest, Thigh) – For increased passenger safety and security
- Heavy duty wheels – Ideal for operation over uneven terrain;
- Lockable rear wheels – Can be applied in situations where the chair needs to remain in a stationary position
- Fold away front and rear grab handles – Single person operation with fold away handles allowing up to 4 people to assist with evacuation
- Dual position seat – Dual position seat allows the user to decide each time which seating position they desire
Benefits of 600H Evacuation Chair
- FDA Registered
- One or Two person operation
- Lightweight
- No heavy lifting required
- Enables small attendants to easily move passengers three times their size
- Exceeds fire safety requirements and emergency response guidelines established to support the Americans with Disabilities Act Wall mountable
What to buy with Evac Chair 600H?
- Evac Chair Anti Theft Alarm Device
- Evac Chair Patient Carrier Seat
- Evac Chair Comfy Seat
How to use 600H Evac Chair
Setting Up Evac Chair:
- While standing behind the Evac Chair, hold it upright and rest one foot on top of the blue base frame crossbar to steady the chair
- Using both hands, pull the handle upwards until the shoulder clips have clicked into place
- Head restraint should not slide down the handle
- While still standing behind the chair, undo the seat belt to release the skis
- Pull these skis towards you to open the seat and push the seat part way downwards into position
- Finally, pull up the seat frame against the ski to ensure it is in position
For Traveling Short Distances:
- You must remain in position behind the Evac Chair using both uprights of the handle to hold it firmly
- Place one foot on the front wheel axle or on the bottom bar as your occupant transfers into the Evac Chair seated position
- Depending on the condition of the occupant further assistance may be required with the transfer
- Seatbelt must now be fastened and the head restraint may be used to assist with airway management if required
- From the transfer position, remove your foot from the front wheel axle until the Evac Chair move backward and the front wheel comes into contact with the ground
- Evac Chair will now balance between the bar of the frame and the front wheels
- From the balance position, tip the chair off further seven centimeters backward that is about three inches and you will be able to move forward in the two-wheel position
- This is the position to use for traveling short distances such as when turning and crossing still landings during descent
For Use On Level Ground:
- Evac Chair should be used in the four-wheel position like a wheelchair
- To achieve the four-wheel position start from the vertical upright position, place one foot on the trolley assembly just over the yellow sticker and pull back sharply to unclip the trolley assembly
- As you remove your foot, the trolley assembly will automatically open
- You may then lower the chair gently onto its wheels
For Stairway Descent:
- Close the trolley assembly in an appropriate area of safety by placing the Evac Chair in a vertically upright position with the bottom bar of the frame on the ground
- Place your foot on the yellow sticker and push the trolley assembly forward until it clicks back into place
- Tilt the chair back into the two-wheel position and move forward to approximately 30 centimeters from the top of the stairs
- Positioned at the inside edge, with one foot in front of the other and slightly apart, tilt the chair a little further back and push confidently over the top of the stairs
- At all times stay near the inside edge of the stairs and make certain the skis make contact with the top two stair nosings
- Never let go of the Evac Chair
- Pause briefly and reposition your hands by sliding them upwards from the vertical position at each side of the handle onto the handles horizontal top crossbar
- When descending, press downwards in a vertical direction for a smooth safe ride and move forward at the same smooth pace as the back chair
- There should be no bumping action
