Features

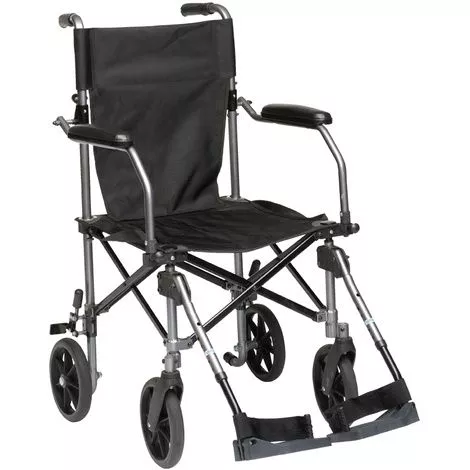

- Drive Travelite Transport Chair includes:
– Padded, flip up desk arms
– Height adjustable footrests
– Parking wheel locks
– Carry bag - 18″ square nylon seat canvas with lift up straps
- 8″ solid tires
- Folding backrest
- Folds for storage and transportation
- Comes in gunmetal grey color
- Click here for User Manual
More Information
- Assembly Instructions
– Fold out the seat fully by pushing down on the four corners of the seat. Ensure the seat is folded out fully otherwise the armrests may not locate properly
– Flip the arm rests around until they locate in to the arm rest receivers (as shown in the photo left)
– The armrest release button will click to indicate that the armrest has securely locked in position
– Pull down the footplate receivers. Then push the brass button and pull down while rotating the footplate until it locks in to position (as shown in the photo left)
– Flip down the footplates
– Pull up the push handle until it locks in to position. You will hear a click when the handle is securely locked. Repeat for the other handle - Folding and Transporting
– Press the release paddle on the half fold back mechanism with your thumb while lightly pulling the push handle down
– Pull the armrest release button while pulling up on the armrest to release. Flip the armrest back until they are hanging vertically down from the chair
– Flip up the footplates and lift up the footplate receivers. Press the brass push button and push the footplate back while rotating approximately 90 degree until it locates in the receiver hole nearest the chair
– Lift the chair by the two lift up straps and the chair should naturally fold up. The chair can be carried using the lift up straps
– If required, unzip the carry bag and insert the chair. If necessary rotate the front castors to allow the chair to fit in the bag. Zip up the bag and carry using the two handles - Brake Option
– It comes with two brakes which should only be applied when the chair is stationary
– To apply the brakes, press the brake handle as shown in the photo. To release the brakes, press the handle in the opposite direction - Operation and Safety
– The stepper tube can be used to lift the front castors to allow the chair to negotiate obstacles such as door thresholds and dropped curbs
– To use this function, the user should press down on the stepper tube with a foot to allow the front castors to lift
– It is not suitable for climbing curbs and obstacles over 2″ (5cm)
– NEVER push down on the push handles to raise the front castors as this could cause damage or injury
– Use slow speeds on gradients
– Do not use it on gradients above 10°
– Do not use on escalators
– Maintain proper balance at all times. The user should not move their center of gravity outside of the seat area
– Do not reach for items further than your arm will extend
– Be aware of hazards in your environment such as rugs, steps, narrow doorways, household appliances, childrens toys, etc
– We do not recommend that the Travelite is used for side transfers
– The brakes are solely to be used as parking brakes. They should not be used to slow down the chair during motion - Care and Maintenance
– Its aluminium frame and nylon upholstery can be cleaned with a damp cloth and mild detergent or disinfectant
– If it is subjected to moisture, it should be dried immediately
– The Travelite should be checked monthly for device integrity. Any loose fasteners should be tightened or replaced, and any torn or worn upholstery or parts replaced
– It comes with solid tires which do not require inflating - Click Here To See How To Change Upholstery
