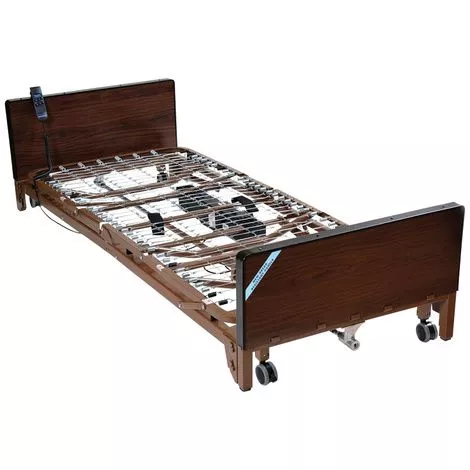

Why choose Drive Delta Ultra Light 1000 Full Electric Low Bed?
- This hospital bed is truly universal because the headboards and footboards are completely interchangeable
- The transition box mounted on the foot section is key to interchangeability
- The transition box allows changing the rotation of the high/low shaft
- The headboard is taller than footboard to better fit home decor
- Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations
- Labels and color-coded springs assure accurate installation of side rails for patient safety
- Unique motor is completely self-contained to reduce weight and noise
- Height-adjustable motor comes pre-installed on the foot section
- Caster easily moves from standard to low bed position
- The motor assembly can be installed and removed with the patient in bed
- Bed, side rails, and mattress safety-tested by SGS, a nationally recognized testing facility, satisfies all applicable FDA entrapment guidelines
- The motor is UL approved
- New and improved hand pendant has large, easy-to-use controls
- Hand crank located on the top of the footboard prevents bending for the caregiver when in the low position
- Channel frame construction provides superior strength and reduced weight
- Zinc-coated spring deck
- Extension kit extends length from 80″ to 84″
- Patent Pending
Drive 15235 Delta Low Full Electric Homecare Bed Parts
Drive Delta Ultra Light 1000 Full Electric Low Bed User Manual
What to buy with Drive Medical Delta Ultra Light Full Electric Bed?
- Drive Tri-Fold Bedside Fall Mat
- Drive Deluxe Tilt-Top Overbed Table
How to care for Delta Ultra Light 1000 Hospital Bed – Drive Medical
The following maintenance and cleaning procedures be conducted between users
- Electronics
- Check all controls to make sure all functions work properly
- Foot control
- Head control
- Hi/Lo
- Check all cables for damaged or frayed wires.
- Power cord
- Pendant cord
- Check to make sure all plugs are fully inserted or attached
- Check 9V battery on the motor and replace it annually
- Check all controls to make sure all functions work properly
- Bed Frame & Sleeping Surface
- Visually check all welds.
- Head section
- Foot section
- Main Frame
- Check joints between sleeping surface sections for loose fasteners
- Visually check all welds.
- Cleaning
- The metal parts of the bed are covered with a powder coating
- Clean all coated parts with mild detergent and warm water
- Periodically raise head and feet sections of the bed and remove dust from frame
- Periodically remove mattress and clean mattress deck
- Lubrication & Mechanical
- Lightly grease all actuator screw threads with white lithium grease
- Lubricate all caster roller and swivel bearings with light machine oil
- Check all bolts and tighten as needed
