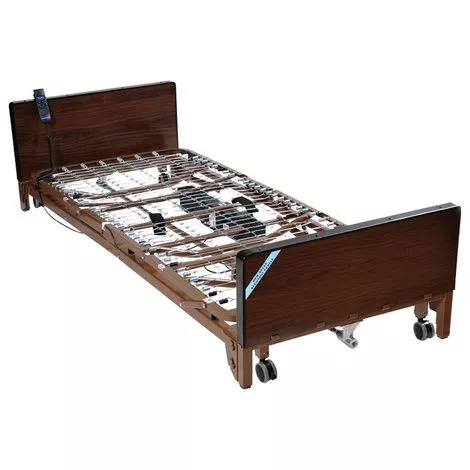

Drive Delta Ultra Light 1000 Full-electric Bariatric Bed Features
- The transition box mounted on the foot section is key to interchangeability
- The transition box allows you to change the rotation of the high/low shaft
- Headboard is taller than footboard to better fit home decor
- The wood grain panels are break and scratch resistant
- Foot section weighs 50% less than conventional foot sections to make deliveries safe and easy
- Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations
- Labels and color-coded springs assure accurate installation of side rails for patient safety
- Unique motor is completely self-contained to reduce weight and noise
- The motor assembly can be installed and removed with patient in bed
- Bed, side rails and mattress safety-tested by SGS, a nationally recognized testing facility , satisfies all applicable FDA entrapment guidelines
- New and improved hand pendant has large, easy-to-use controls
- Channel frame construction provides superior strength and reduced weight
- Extension kit extends length from 80″ to 84″
- Patent Pending
- Durable Powder Coating
- The Delta 1000 hospital bed is truly universal because the bed frame can be used with most other manufacturers’ bed ends, old and new
Delta 15033 Full Electric Bed Parts
Drive Delta Ultra Light 1000 Hospital Bed User Manual
What to buy with Drive Medical Delta Ultra Light Full Electric Bed?
- Drive Double Top Overbed Table
- Drive PrimeMat 2.0 Impact Reduction Fall Mats
How to care for Drive 15033 Delta Ultra Light 1000 Bed?
The following maintenance and cleaning procedures be conducted between users
- Electronics
- Check all controls to make sure all functions work properly
- Foot control
- Hi/Lo
- Head control
- Check all cables for damaged or frayed wires.
- Pendant cord
- Power cord
- Check to make sure all plugs are fully inserted or attached
- Check 9V battery on the motor and replace it annually
- Check all controls to make sure all functions work properly
- Bed Frame & Sleeping Surface
- Visually check all welds
- Foot section
- Head section
- Main Frame
- Check joints between sleeping surface sections for loose fasteners
- Visually check all welds
- Cleaning
- Clean all coated parts with mild detergent and warm water
- The metal parts of the bed are covered with a powder coating
- Periodically remove mattress and clean mattress deckPeriodically raise head and feet sections of the bed and remove dust from frame
- Lubrication & Mechanical
- Lubricate all caster roller and swivel bearings with light machine oil
- Lightly grease all actuator screw threads with white lithium grease
- Check all bolts and tighten as needed
Warnings:
- Keep the product a minimum of 12 inches away from any direct heat source
- Do not place video equipment such as televisions or computer monitors on bed
- Make sure head and foot springs/sections are connected securely to the universal bed ends before use
- Cancer and Reproductive Harm – www.P65Warnings.ca.gov
