Features

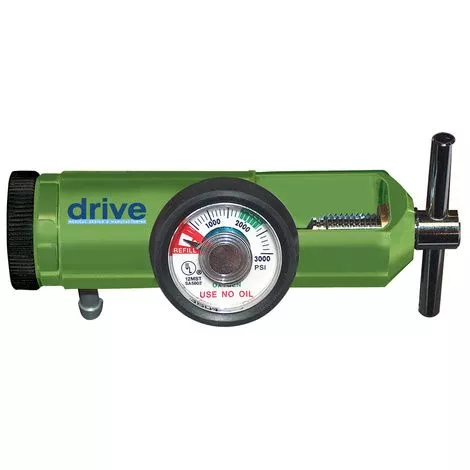

- Drive 870 Mini Oxygen Regulator features barb outlet
- Intended for the administration of oxygen to patients who need increased oxygen levels to improve their breathing conditions
- Facilitates an easier fit into oxygen carry bags
- Lightweight and durable design
- Meet or exceed accuracy standards for ASTM, American National and CGA
- Inlet pressure: 300 to 3,000 PSI
- Outlet pressure: 50 PSI
- Connection: 870
- UL Approved
- Liter flow increments:
– 18301GM: 0.12, 0.5, 1, 1.5, 2, 2.5, 3, 4, 6 and 8
– 18302GMN: 0.12, 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10 and 15 - Color: Green
More Information
- Usage:
– Be sure the regulator is in the “off” position by rotating the knob counterclockwise to the “0” position
– For safety, be sure you are not directly in front of or behind the regulator when opening the cylinder valve
– SLOWLY turn the cylinder valve (counter clockwise) about one full turn
– If you can hear a hissing sound, there is a leak in the system
– Turn the cylinder off and turn the regulator on to relieve any built up pressure
– Try tightening the regulator to the cylinder and opening the cylinder again
– If this does not help, shut the system down again and contact a service representative
– NEVER attempt to repair a regulator or cylinder yourself
