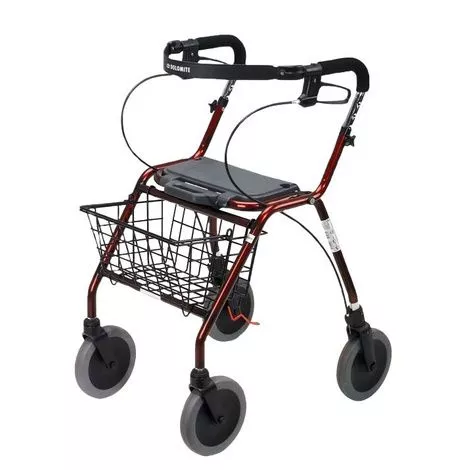

Clarke Dolomite Legacy Walker Features
- Magnetic seat latch secures against accidental closure
- The curb climber on the rear wheel assists in lifting the front of the walker
- Foam grips for a comfortable and secure grip
- Flexible and adjustable back strap
- Basket with carry handle
- Welded steel frame
What to buy with Dolomite Legacy Rollator
- Clarke Dolomite Legacy Walker basket
- Graham-Field Lumex Mobility Pouches
- Triumph Mobility Escape Shopping Bag
How to use Clarke Dolomite Legacy Walker?
- Frame:
The strongest frame on the market, Dolomite welds the steel frame for greater durability, no screws to loosen at joints. Legacy is available in two colors: Metallic Blue or Candy Apple Red. There are three frame sizes to accommodate individuals of all sizes. Dolomite frames are easily folded for storage or transportation. The handles are height-adjustable in 4 increments. - Braking:
Legacy comes with the patented Dolomite Automatic Braking System with adjustable tension for varied grip strength. Brake handles have a wide flange and large loops for comfortable hand positioning. When parked and using the seat, push down the handle to set the parking brakes. The brake mechanism is located within the fork for protection from damage. Accessory slow-down brake provides adjustable tension for hilly terrain or to even out the direction of travel for stroke patients
Installing Curb Climber:
- Remove hubcaps, and use pliers to pull them off
- Remove the axle bolt and nut
- Insert curb climber on inside of walker right wheel, positionbetween wheel. And fork. The top hole is for 8″ casters (Futura), and the bottom hole is for 7″ casters (Opal 2000).
- Reinsert the bolt and tighten the nut
- Replace hubcaps using a rubber mallet
Safety:
- Do not use it as a wheelchair or transport chair
- Do not under any circumstances stand on the walker
- Use a seat for stationary seating only. Never sit and push with your feet
- Do not go up or down stairs or use on escalator
- Both brakes must be in the parking position when the walker is used as a seat
- The walker must be fully unfolded when used as walking support
- N.B. The walker may only be used as a walking support
- Be extra careful when using the walker on a sloping surface
- Be extra careful when carrying heavy loads in the basket. Loads may only be carried in the basket or on the tray. Maximum load on tray 11lb (5 kg)
